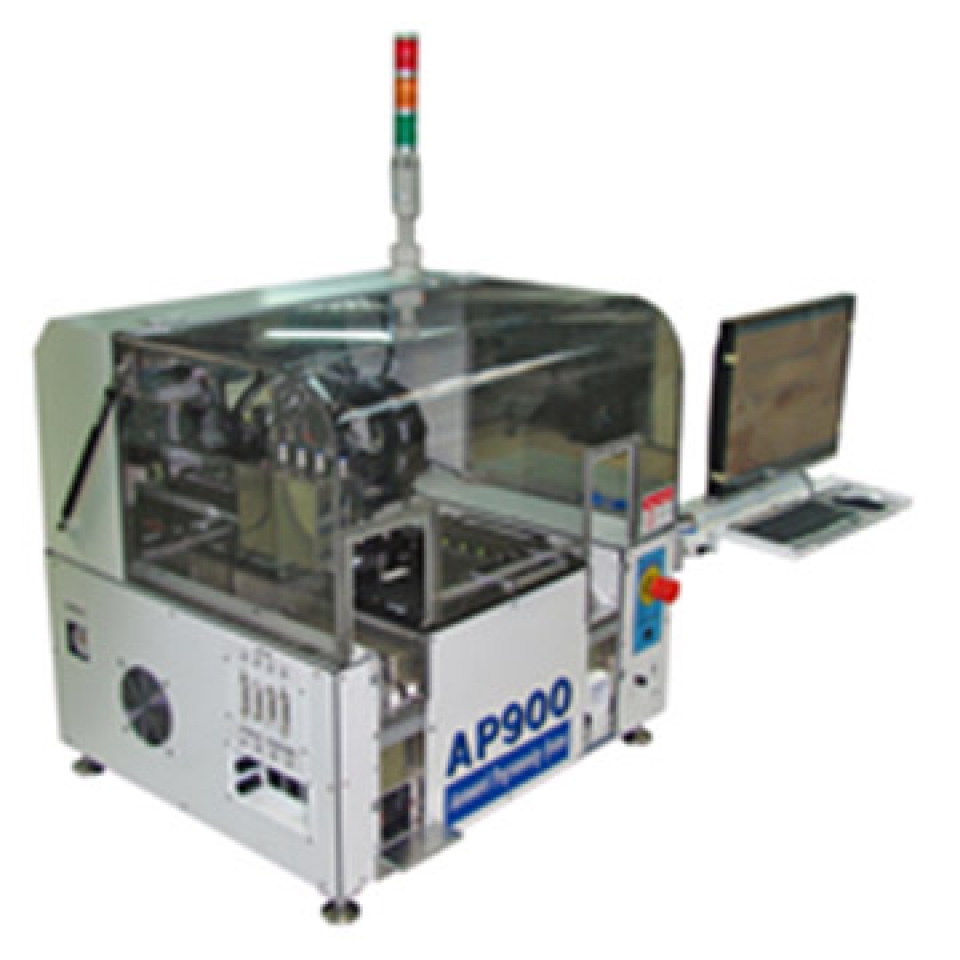

AP 900
AP 900
  •  Compact dimension for bench-top operation
  •  Handles four devices at each insertion/removal reducing gantry movement and improving overall efficiencies
  •  Equipped with four units H9800, each with 16 gigabits of RAM
  •  Universal support for memory, microcontrollers, and programmable logic
  •  Expandable to 16 sockets via quad-site socket boards
  •  600 units per hour throughput (programming duration ≤60 seconds)
  •  Friendly "Auto-Teach" mechanism minimizes operator effort and time for job changeover
  •  Gentle/reliable socket actuation via stepping motors slows socket wear-out
  •  Precisor or CCD cameras accurately align devices for insertion
  •  Tray input and output supported, optional tape-n-reel and tube interfaces
